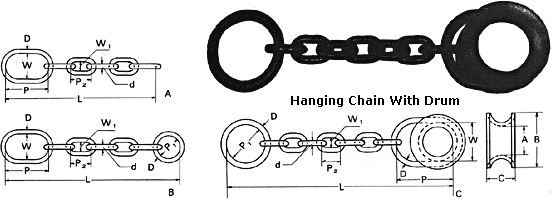

Fishing Net Chain

183-11

Size	L	Weight (kg)	Common Links	D	P	P₁	W	W₂	d	P₂	W₁	A	B	C
A9.5	212	0.47	5	12	82		60		9	26	13.5
A13-3	209	0.74	3	14	95		50		13	38	19.5
B9-3	220	0.58	3	12	82	60	60		9	26	13.5
B9-7	324	0.77	7	12	〃	〃	〃		9	26	〃
B13-5	380	1.37	5	14	95		67	50	13	38	19.5
B13-7	456	1.64	7	14	〃		〃	〃	13	38	〃
B13-9	532	1.90	9	14	〃		〃	〃	13	38	〃
C9-3	215	1.78	3	12	82	60	67		9	26	13.5	48	90	50
C9-7	319	1.97	7	12	〃	〃	〃		9	26	〃	〃	〃	〃
C13-5	375	2.57	5	14	95		67	50	13	38	19.5	〃	〃	〃
C13-7	451	2.84	7	14	〃		〃	〃	13	38	〃	〃	〃	〃
C13-9	527	3.10	9	14	〃		〃	〃	13	38	〃	〃	〃	〃

Eye and Eye Swivel

d	A	B	C	Weight (kg)	S.W.L (kN)
22	245	45	55	2.8	15
25	280	52	64	3.8	20
28	315	57	70	4.6	25

Triangle

d	A	B	C	Weight (kg)
19	238	205	30	2.1
22	238	205	30	2.8
25	300	300	60	3.6

Joint

Size	Applied chain size	A	B	Weight (kg)
SUJ13	11～13	85	38φ	0.43
SUJ16	13～16	100	42	0.62

CP – Coupling Link

cp1

Size	Applied Chain	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	W.L.L (t)	Breaking Load t	Weight (kg)
CP-7	T-7	43.5	57	16.3	8	12	1.3	6.5	0.10
CP-9	T-9.5	56	65	22	11	16.5	2.4	12	0.22
CP-11	T-11	65	70	22.5	13	20	3.2	16	0.35
CP-13	T-13	76	90	29.5	16	22	4.4	22	0.59
CP-16	T-16	94	112	33	18×19	30	6.6	33	1.2
CP-19	T-20,S-19	111	134	41	20×22	36	10	52	1.8
CP-22	T-22,S-22	127	148	46	26	41	12	62	3.0
CP-25	T-25,S-25	145	168	53.5	30	47	15	79	4.3
CP-28	T-28,S-28	161	185	57.5	33	52	20	100	6.1
CP-32	T-32,S-32	190	210	67	38	54	24	120	8.8

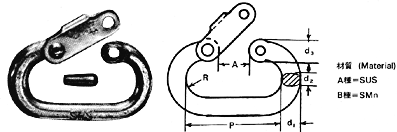

CK – Coupling Link

Size	A	P	R	d1	d2	d3	Weight (kg)	B.L (kN)
Size	A	P	R	d1	d2	d3	Weight (kg)	A	B
CK-9	14	46	9	10	6	11	0.07	40	60
CK-12	18	60	11.5	13	10	14	0.12	50	80

Cramp

Size	Applied Chain	A	d	B	H	Weight (kg)
SL-C-1	7	23	10	8	42	0.12
SL-C-2	9.5	26	13	11	50	0.24
SL-C-3	11	34	15	13	62	0.45
SL-C-4	13～14	38	18	15	73	0.76

Long Cramp

Size	Applied Chain	A	B	P	D	Weight (kg)	B.L (kN)
CL-4	13	38	15	64	18	0.8	220
CL-5	16	45	18	68	22	1.4	330
CL-7	19	52	21	72	26	1.8	450

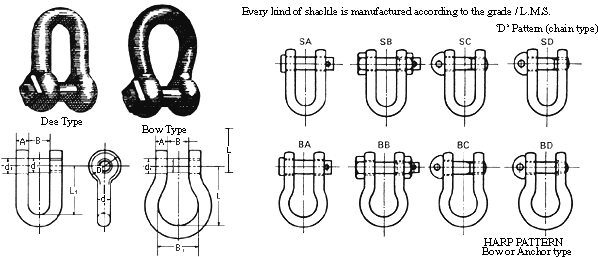

Square Head Pin Shackle

Size	A	B	B1	L	L1	D	d	B.L(t)	Weight (kg)
Size	A	B	B1	L	L1	D	d	B.L(t)	Dee	Bow
19	19	38	60	97	88	48	22	30	1.07	1.11
22	22	44	68	110	100	54	25	45	1.59	1.69
25	25	50	76	123	112	60	28	60	2.24	2.40
28	28	56	86	141	128	67	32	70	3.18	3.42
32	32	64	95	154	140	76	35	100	4.59	4.90

square
