Double Chain Conveyor

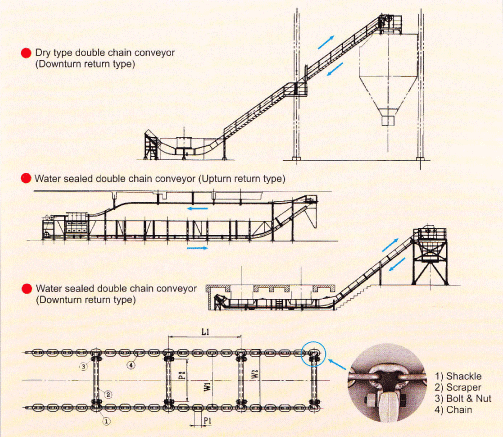

Construction Drawing

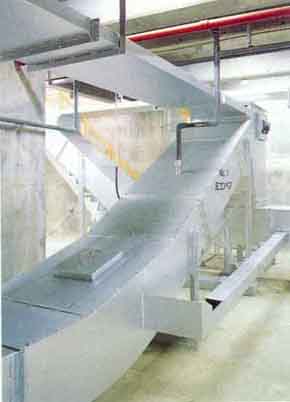

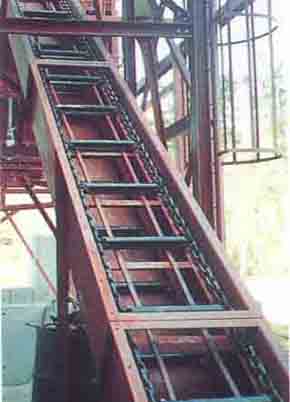

Examples of Usage

Part’s List (Shape of Shackle may be different from above.)

Chain Shackle Bolt Scraper Chain Scraper P2 Chain C to C W1 Outside Width W2 Chain Link Number Scraper Pitch L1
Dia d Pitch P1
H-1143 C-1143 B-14 S11-20 11 43 200 275 330 15 688
H-1450 CAS-14 B-14 S14-26 14 50 260 345 391 15 800
H-1655 CA-16 B-16W S16-27 16 55 270 362 420 15 880
H-1864 C-1864 B-18 S18FL-39 18 64 390 500 588 15 1024
H-1964 CA-19 B-18 S18FL-39 19 64 390 500 556 15 1024
H-2064 C-2064 B-20-1 S20-39 20 64 390 500 592 15 1024
H-2272 C-2272 B-22-1 S22-38 22 72 356 490 596 13 1008
H-2486 C-2486 B-24 S24-33 24 86 330 470 590 11 1032
Dimensions (mm)
Legend
W.L.L= Working Load Limits
P.L= Proof Load (kN)
B.L= Breaking Load (kN)
