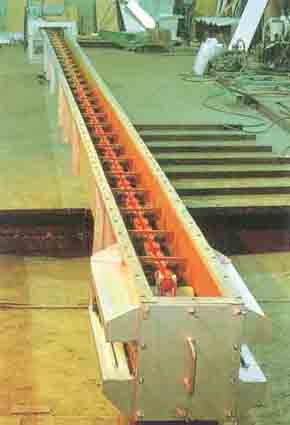

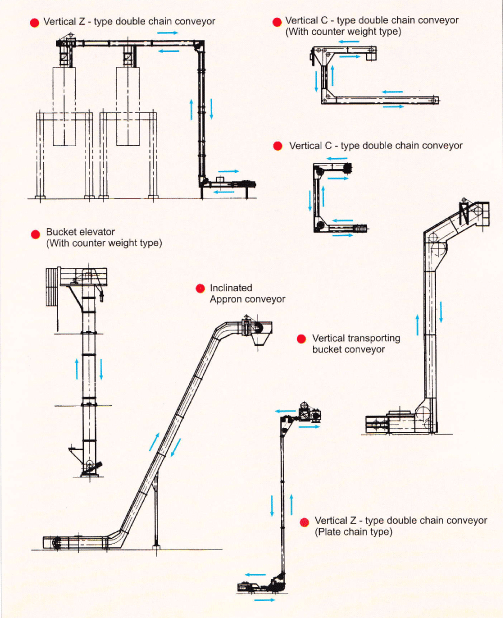

Center Chain Conveyor
Construction Drawing
Part’s List (Shape of Shackle may be different from above.)
| Chain | Scraper + Chain Holder | SK type coupling | Chain | Scraper Width | |
|---|---|---|---|---|---|
| Dia | Pitch | ||||
| H-1450 | S-14C-185 | SK-14 | 14 | 50 | 185 |
| H-1450 | S-14C-235 | SK-14 | 14 | 50 | 235 |
| H-1450 | S-14C-285 | SK-14 | 14 | 50 | 285 |
| H-1655 | S-16C-285 | SK-16 | 16 | 55 | 285 |
| Chain | Half Shackle | Scraper Plate thickness | Chain | |
|---|---|---|---|---|
| Dia | Pitch | |||
| H-1450 | HC-14 | 9 | 14 | 50 |
| H-1655 | HC-16 | 12 | 16 | 55 |
